Regolatore di carica solare 15A 200W MPPT MPL15

SOLARFARM 12/24 BATT. 200W 60Voc

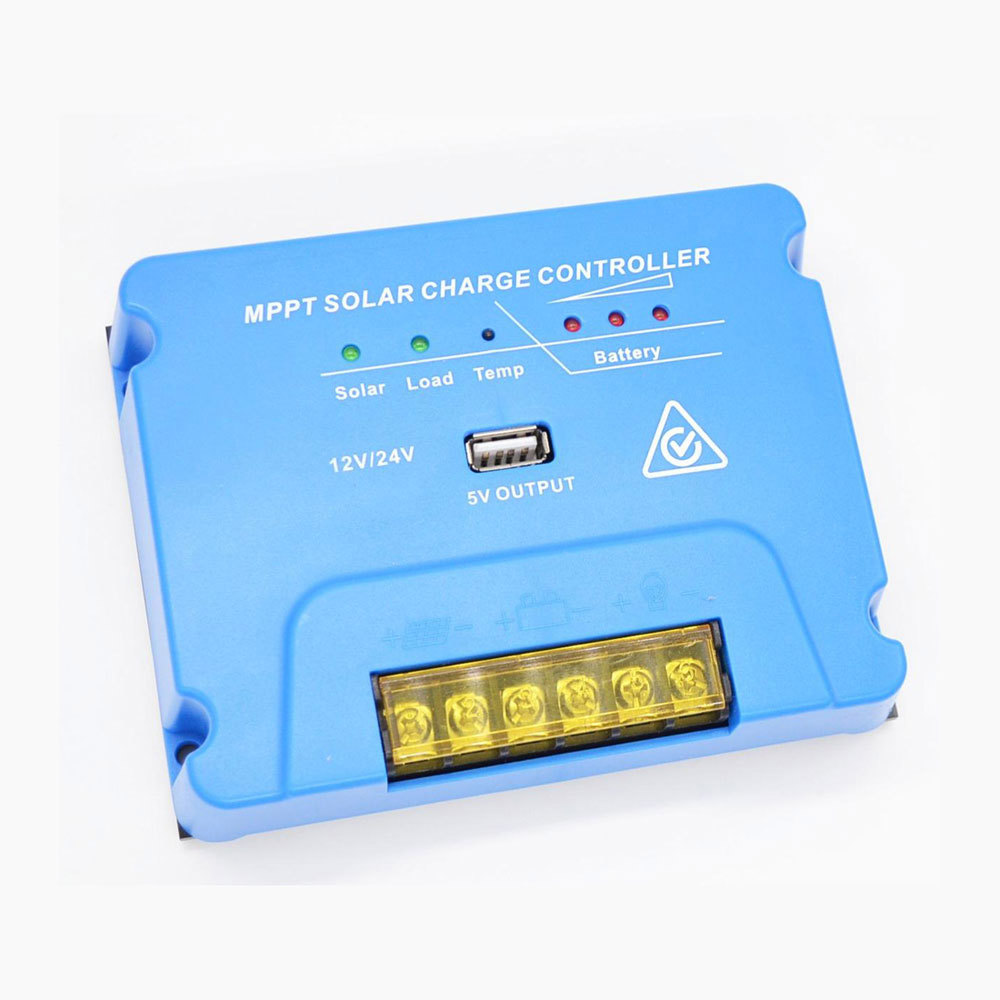

SOLARFARM MPL15A MPPT controller features efficient control as well as being compact for solar systems.

The MPPT MPL15A Controller from SOLARFAM is an advanced device designed to optimize energy collection in photovoltaic solar systems. With MPPT (Maximum Power Point Tracking) technology, this controller adjusts the solar panel voltage to ensure maximum system efficiency. Ideal for small-scale solar installations, it provides reliable performance and advanced protection for connected batteries, making it a versatile choice for various off-grid applications.

Technical Specifications:

Model: MPL15A
Rated Current: 15A
Working Voltage: 12V / 24V (auto-adjustable)
Technology: MPPT (Maximum Power Point Tracking)
Conversion Efficiency: =98%
Maximum Input Power: 200W for 12V systems, 400W for 24V systems
Compatible Battery Types: Lead-acid, AGM, GEL, and lithium batteries
LCD Display: Yes, for real-time monitoring of parameters such as voltage, current, and battery status
Integrated Protections: Over-voltage, overload, short circuit, deep discharge, and overheating protection
Operating Temperature: -20°C to +60°C
Protection Rating: IP32

Advantages and Benefits of the MPPT MPL15A Controller by SOLARFAM:

High energy efficiency: MPPT technology maximizes energy collection by continuously adjusting the system’s voltage to match optimal power output.
Multi-battery compatibility: Supports various battery types, including lead-acid, GEL, AGM, and lithium, allowing for flexibility in different solar setups.
Real-time monitoring: Equipped with an LCD screen, the controller provides precise real-time monitoring of key parameters such as voltage and current, allowing for effective system control.
Advanced protection: Offers comprehensive protection against overloads, short circuits, over-voltage, and more, ensuring the system’s safety and extending battery life.
Compact and efficient design: Perfect for small solar installations or limited space applications, providing efficient energy management in a compact unit.

Applications:

Solar photovoltaic systems for small homes or rural areas
Solar energy projects for caravans, boats, and recreational vehicles
Portable solar installations or remote site setups
Renewable energy projects requiring a compact and efficient solar controller
