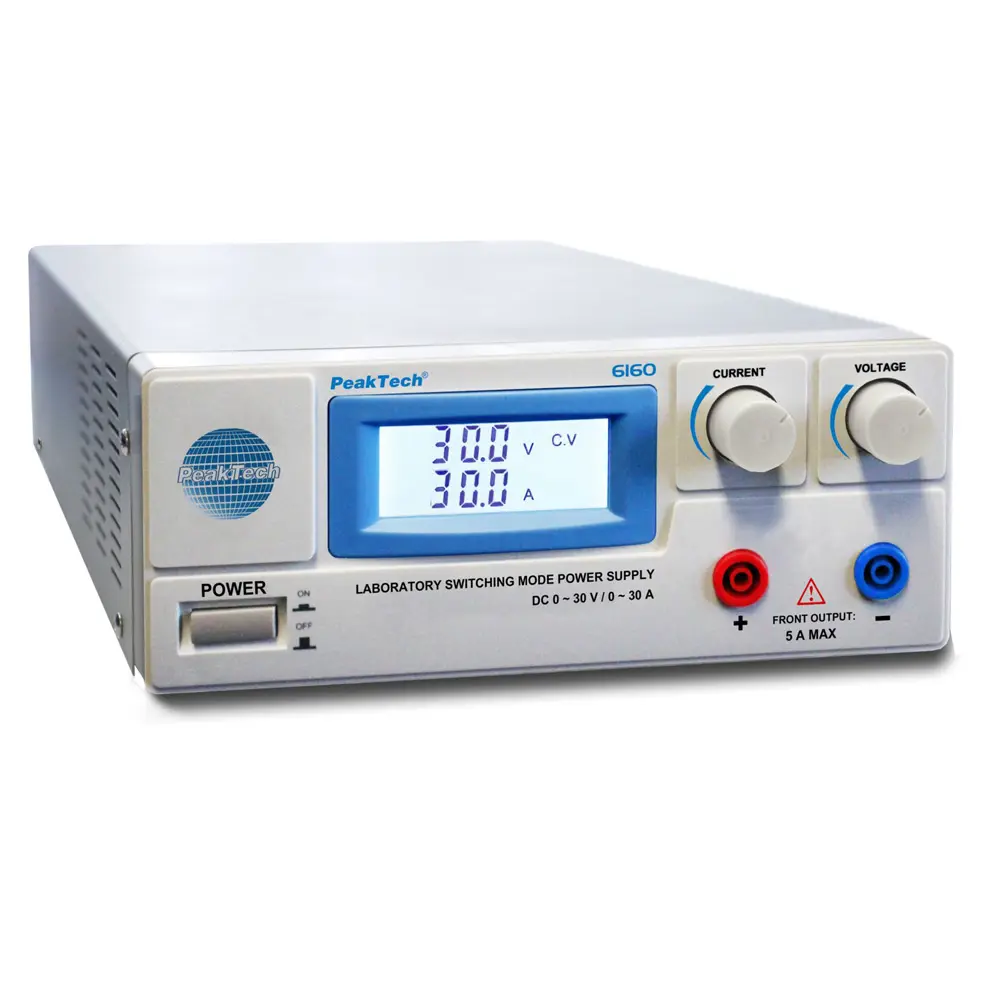

Alimentatore da banco 0-30V/0-30A PeakTech 6160

A newly developed series of switching power supplies for a wide range of applications in the telecommunications sector, laboratories and industry. These power supplies are exceptionally resistant to close-range high-frequency interference.
It features constant current protection, over-voltage protection and protection against over-temperature at constant current. This ensures the high reliability and durability of these power supplies.

• Illuminated LCD display for showing the output voltage and current values
• High efficiency
• Protected against short circuit, overload and overheating
• Adjustable voltage range: 1 - 30 V
• DC output: terminal clamps up to 30 A
• Safety: EN-61010-1
• Accessories: mains cable and user manual

Technical data:
Output voltage: 1 - 30 V DC
Output current/rear terminals: 0 - 30 A
Front-panel output jacks: 4 mm safety sockets up to 5 A
Residual ripple: 50 mVss/pp, 5 mVeff/rms
Load regulation: 50 mV (10 - 100% load)
Voltage regulation: 50 mV ( +/- 10% deviation)
Display: 3-digit: +/- 0.2% + 3 digits
Protection: overload, overheating, short circuit with constant current source and output over-voltage
Operating voltage: 200 ~ 240 V AC, 50/60 Hz
Dimensions (W x H x D): 214 x 87 x 336 mm
Weight: 2.9 kg
