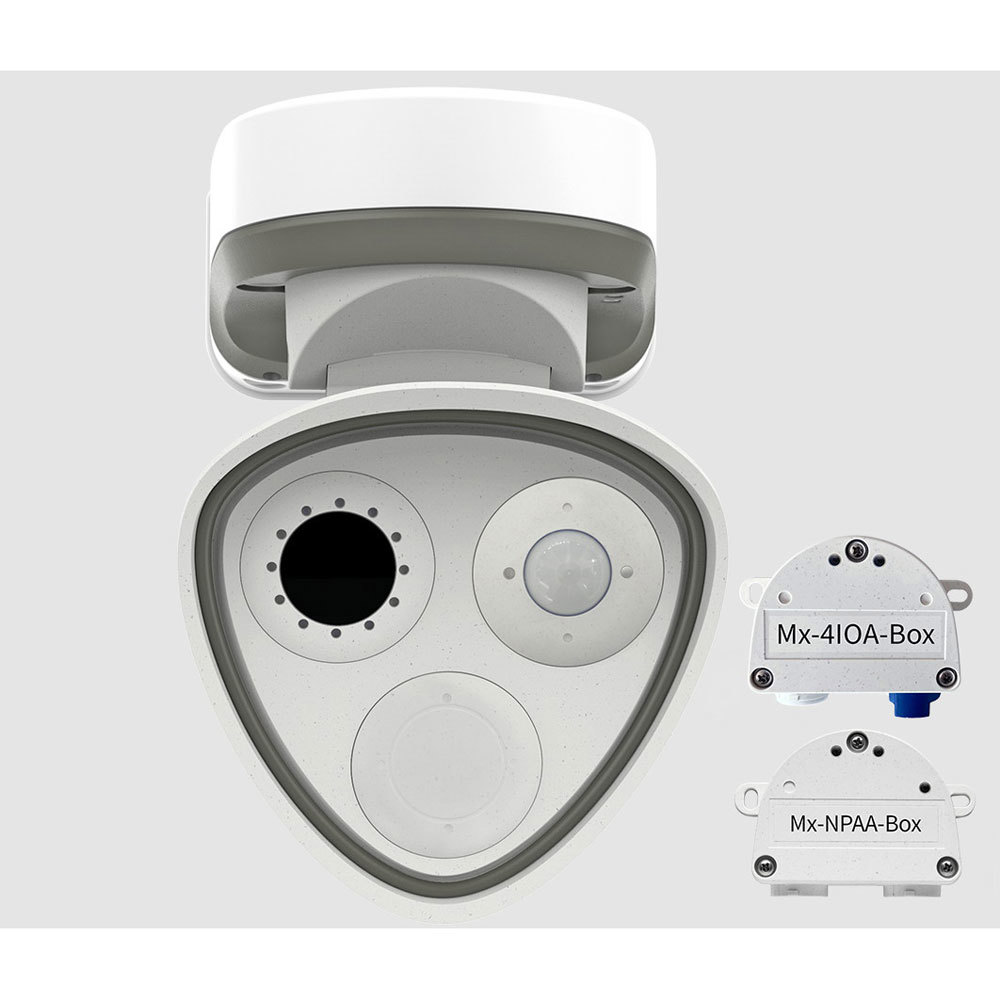

IPCamera MOBOTIX Set Mx-M73TA TermoGraphic M73TA2

SM73TA-B336R100-EN54-V2 BUNDLE EN54-V2

Sistema per il rilevamento degli incendi e il monitoraggio efficiente delle batterie CERTIFICATO EN 54-10
comprende: Mx-M73A-RJ45, Mx-O-M73TB-336R100, Mx-F-MSA, Mx-O-M7SA-Blind, Mx-F-4IOA, Mx-F-NPAA

La rapidità di azione può salvare vite e beni
- Riconoscere il pericolo prima che si sviluppino le fiamme
- Localizzare il più rapidamente possibile le batterie danneggiate o in fiamme
- Consentire l'intervento, avvisare e informare le persone interessate
- Attivare automaticamente misure di emergenza
- Possibilità di integrazione in sistemi antincendio già esistenti
- Monitorare le batterie in maniera affidabile 24 /7
- Memorizzare i valori di temperatura delle batterie in apposite banche dati

EN54 V2 bundle • M73A IP camera module (body) for connecting up to 1 additional optical sensor module (to be ordered individually) • ONVIF-S-compliant MOBOTIX 7
system platform with H.264 (Triple Streaming), H.265, MxPEG+ and M-JPEG • CIF Thermal sensor (336 x 256 Pixel), with Thermal Radiometry, 45° x 35° • Image sensor
options (via sensor module): 4K (8 megapixels), color (day) and/or B/W (night) and/or color (day/night with IR cut) • Lens options (via sensor module): horizontal
image angle from 95° to 15° • Max. image size (per image sensor): 4K UHD (3840 x 2160 pixels), 16:9 • WDR: 120 dB Tripple Shutter • Functional module: MultiSense
(PIR, temperature, brightness sensor, Microphone), 1x miniUSB • Operating conditions: IP66/IK07, -40 to 65°C (-40 to 149 °F) • Internal DVR: 8 GB microSD (for
MxPEG+ recordings) • Max. Power consumption: 25 W, supply via network cable, PoE Class 4 (IEEE 802.3af/at) • Connections: 1x RJ45 jack for weatherproof network
connection via MOBOTIX patch cable (Ethernet 1000BaseT), 1x MOBOTIX module connection (optical), I/0 (1x input, 1x output), 1x line in,1x line out, 1x miniUSB •
Software interface for MOBOTIX Certified Apps (based on Deep Learning, approx. 20 different 30-day demo versions pre-installed) • Housing: Aluminium, PBT-30GF •
Color: white • Warranty: 5 years (optionally extendable up to 8 years) • Bundle
