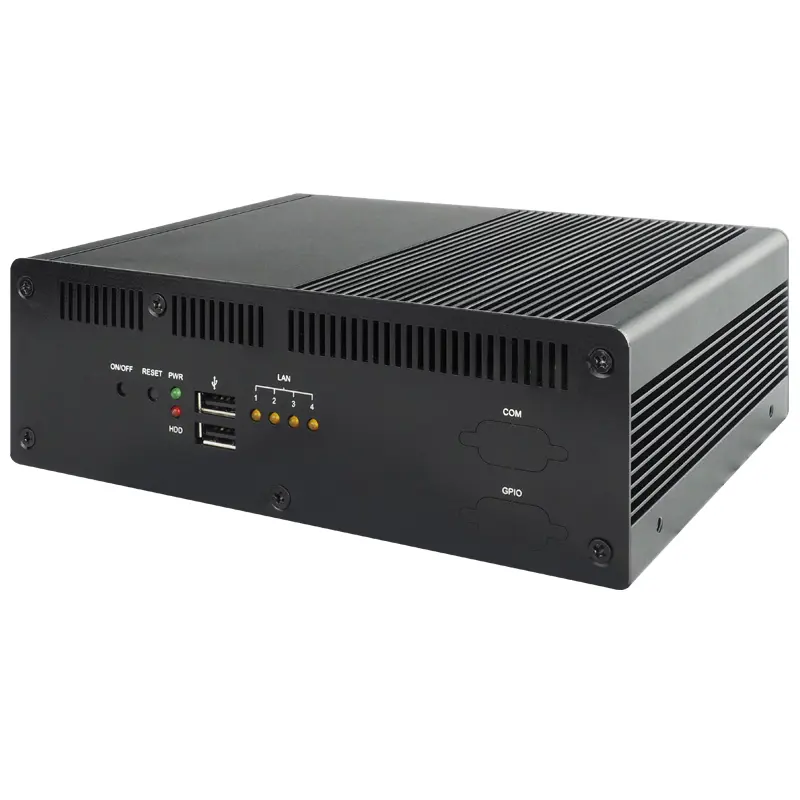

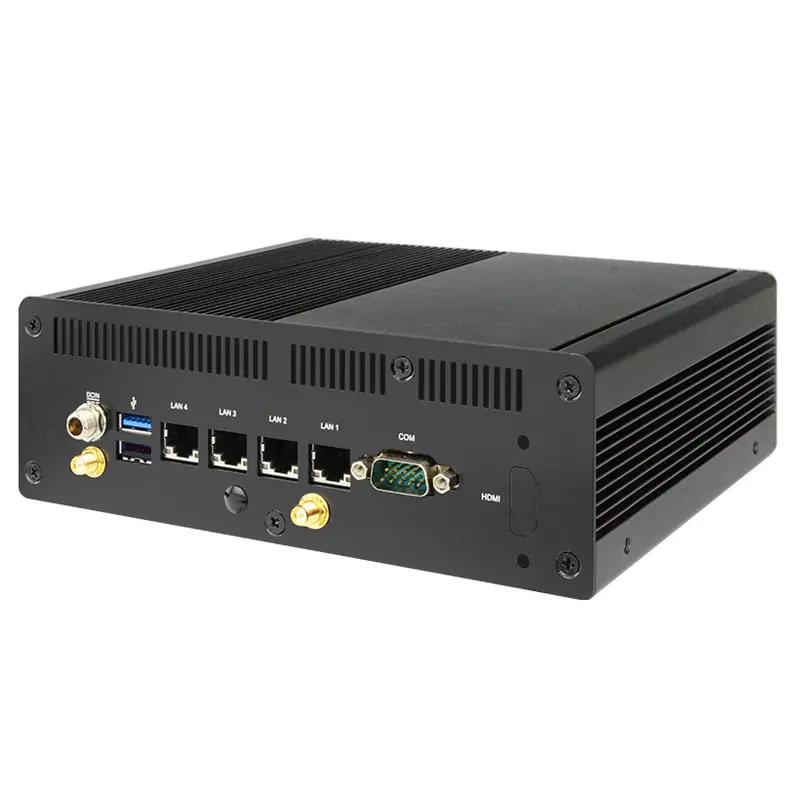

PC Jetway industriale HBFDF13I-6412-B FDF13I

J6412 - DDR4-4x GbLAN+ RS232/485+WLAN AC
- 4 LAN Ports Fanless Network Appliance with Intel® Elkhart Lake SoC processor

- Intel® Elkhart Lake SoC Processor, Default: J6412
- 1* 260-pin Dual-channel DDR4 3200MHz SODIMM Up to 32GB
- 1* COM (RS232/422/485), 1* USB3.1 Gen.2, 3* USB2.0
- 4* Intel® i225V 2.5GbE
- 1* M.2 M-key, 2242/2280 (SATA/PCIe Gen.3 x2) support NVMe,
1* M.2 E-key, 2230 (USB2.0/PCIe Gen.3 x1), 1* M.2 B-key,
3042/3052 (USB3.1), 1* SIM card slot
– 1 * 2.5” SATAIII 6Gb/s internal drive bay
(only support 2.5" HDD with a height = 10mm)
– 1 * M.2 M-KEY (2242/2280,SATA/PCIe Gen.3×2 interface)
support NVME
– 1 * M.2 E-KEY (2230,USB2.0/PCIe Gen.3×1 interface)
– 1 * M.2 B-KEY (3042/3052,USB3.1 interface)

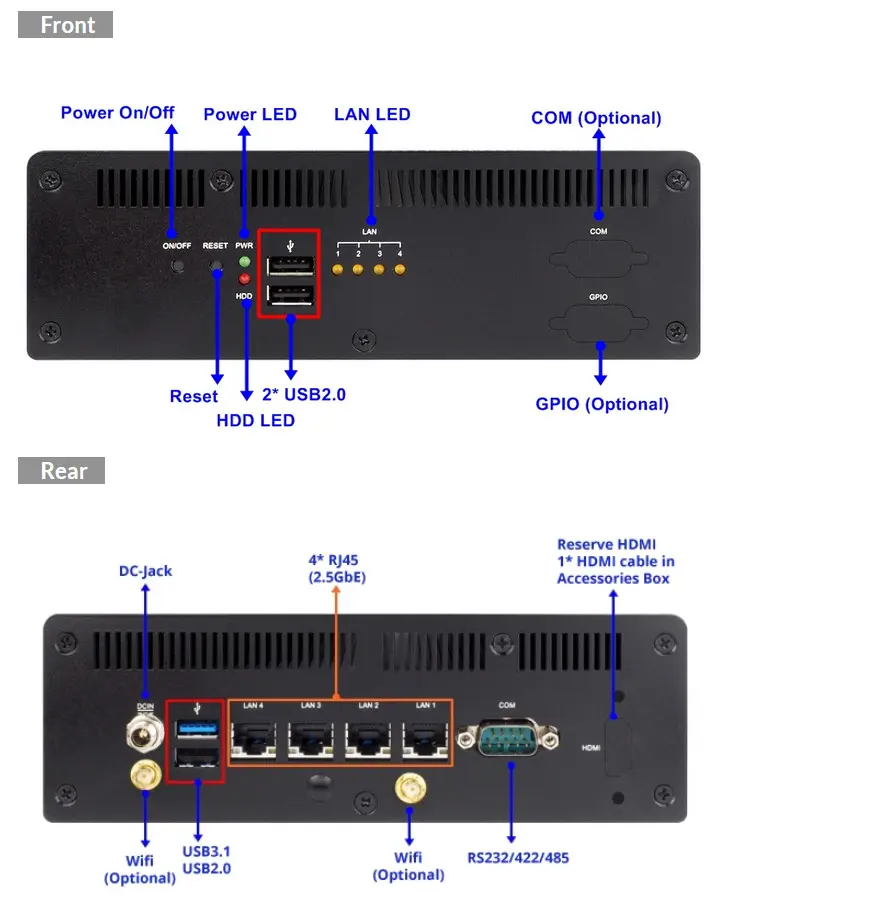

– 4 * RJ45
– 1 * USB3.1, 1*USB2.0
– 1 * HDMI (Reserve, Max. resolution: 1920×1080@60Hz)
– 1 * COM (RS232/422/485)
– 1 * DC-in jack Lock type
– 2 * USB2.0
– 1 * COM & 1 * GPIO (option)

OS Support: Windows 11, Linux
– 193 (W) x 142.4 (D) x 62 (H) mm Net Weight: 2.2KG
– Operating Temperature: -20 ~ 60° C
(Under the condition of using mSATA or SSD)
