Ethernet RJ45<>BNC VDSL2 EXTENDER Gb VC232G

PLANET VC-232G Gigabit 1,4Km 75ohm
High Performance Gigabit Ethernet over Coaxial Solution

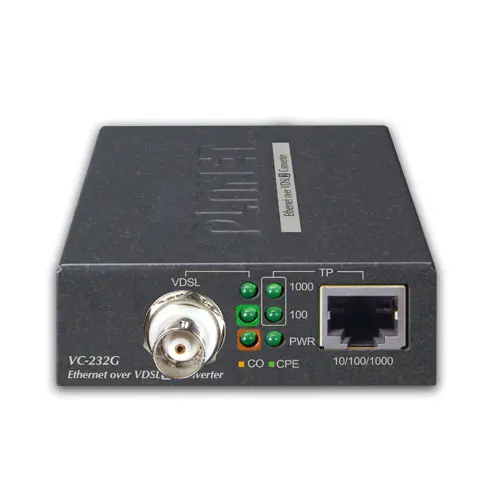

To fulfill the needs of long distance and higher speed required Ethernet over Coaxial applications, PLANET Technology offers a new-generation Ethernet over Coaxial Converter, VC-232G. It features 1 10/100/1000BASE-T RJ45 port and 1 BNC female connector with a compact-sized metal housing, making the placement of the unit convenient. Working well with a pervasive coaxial network, the VC-232G provides an excellent bandwidth of up to a total duplex data rate of 300Mbps which can extend a maximum distance up to 1.4km. It is ideal for extending the distance and signal conversion by transmitting the Ethernet data from the coaxial cable to another 100-meter UTP cable for any type of IP network device such as HD IP camera, wireless access point, NVR and digital signage.



Superior Upstream and Downstream Transmission

The VC-232G is based on the two-core networking technology, Gigabit Ethernet and VDSL2 (Very-high-data-rate Digital Subscriber Line 2). The VC-232G offers a stable yet high-speed point-to-point network access up to a duplex data transmission of 300Mbps. It provides 2 selective transmission modes -- asymmetric mode or symmetric mode -- for the transmission of upstream and downstream signals.

¦ Asymmetric mode – downstream up to 200Mbps and upstream up to 100Mbps
¦ Symmetric mode – downstream up to 150Mbps and upstream up to 150Mbps
The symmetric mode provides similar transmission rate on both downstream and upstream. On the other hand, the asymmetric mode performs higher transmission quality in short range. In all, when the VC-232G is in symmetric mode, it provides better upstream performance, and when it is in asymmetric mode, it gives better downstream performance.
