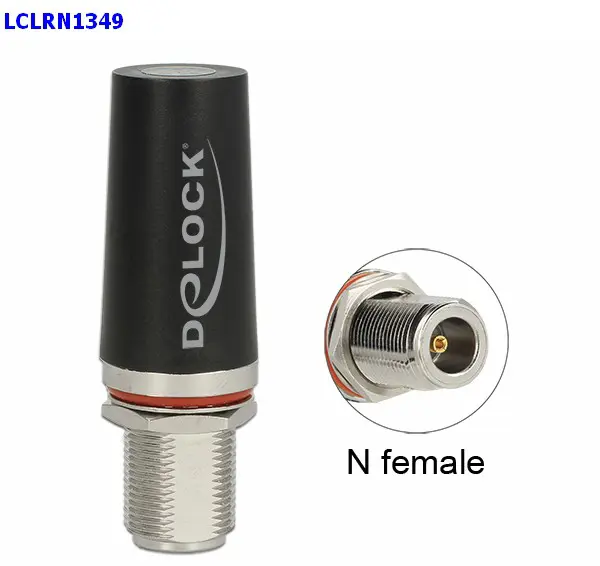

Antenna LTE/3G N-FEM 3dBi OUTDOOR 12456

DELOCK GSM/UMTS/Bluetoot/WLAN/ZigBee/DCT
This LTE antenna by Delock can be installed outdoors or indoors and can take advantage of all four LTE bands. It is completely compatible to GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT and Z-Wave.

• Connector: N jack
• LTE Band 1 - 10, 12 - 20, 23, 25 - 30, 33 - 41, 43, 44
• Frequency range: 690 - 960, 1710 - 2170, 2500 - 2700 Mhz
• GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave
• Antenna gain: 3 dBi
• Impedance: 50 Ohm
• Polarisation: vertical
• VSWR: 2.0
• Operating temperature: -40 °C ~ 70 °C
• Housing: ABS UV resistant
• Protection class: IP67
• Screw mounting hole diameter: 13.5 mm
• Colour: black
• Dimensions (LxWxH): ca. 66 x 22 x 22 mm

System requirements
• Device with free N connector
• Metal ground plane on mounting point
