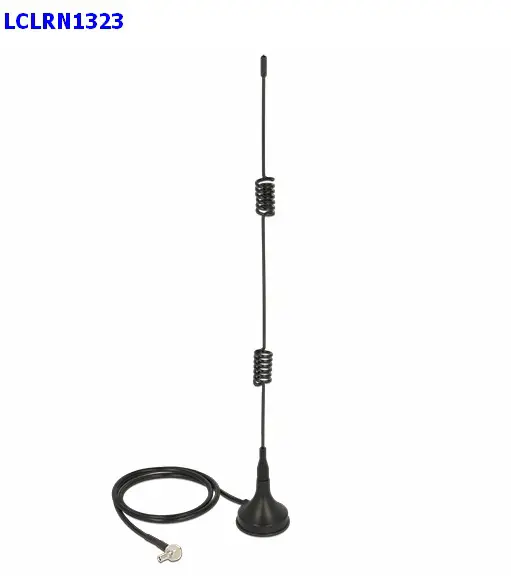

Antenna GSM/LTE/3G TS-9 90° 3dBi 12480

DELOCK LTE/Bluetooth/GSM/UMTS/WLAN 2.4
This Delock LTE antenna allows the use of different LTE bands indoors. It is completely Bluetooth, GSM, UMTS, WLAN 2.4 GHz, Z-Wave and ZigBee compatible.

Specification
• Connector: TS-9 plug 90°
• LTE Band: 1 - 10; 12 - 20; 23; 25
• Frequency range: 698 - 2700 MHz
• Bluetooth / GSM / UMTS / WLAN 2.4 GHz / Z-Wave / ZigBee
• Antenna gain: 2 - 3 dBi
• Impedance: 50 Ohm
• Polarisation: linear, vertical
• Horizontal beam angle: 360°
• VSWR: 3.5
• Operating temperature: -10 °C ~ 55 °C
• Colour: black
• Dimension (Ø x L) antenna: ca. 10 x 265 mm
• Dimension (Ø x H) stand: ca. 30 x 28 mm
• Cable: coaxial
• Cable type: RG-174
• Cable color: black
• Cable loss: 1.5 dB @ 1.5 GHz per meter
• Cable diameter: ca. 2.7 mm
• Cable length: ca. 50 cm
