Informatica: Palmari GPS Kit e Palmari GPS
DELOCK

Antenna GNSS/GPS multi SMA IP66 60555

24,40 € cad.
20,00 € (IVA esc.)
Oltre 5pz 19,52 € 16,00 € (IVA esc.)
Spedizione gratuita su tutti gli ordini oltre 100,00 €
Disponibilità immediata
cod. KGPSK1045
OUTDOOR RHCP 30dBi CAVO 3mt

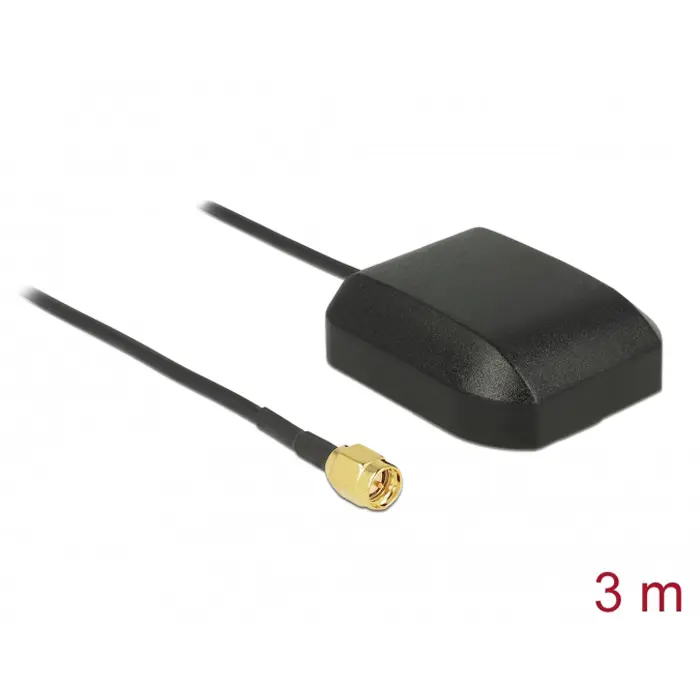

Navilock NL-281GG Multi GNSS GALILEO GLONAS GPS SMA Stecker Antenne 3 m outdoor

This external Navilock GNSS antenna is equipped for the simultaneous reception of GPS and GLONASS signals.

• External active additional antenna for GNSS receivers
• Connector: SMA plug
• Polarisation: RHCP
• Frequency range:
    GPS: 1575,42 MHz +/- 1.023 MHz
    GLONASS: 1598,0625 MHz ~ 1605,375 MHz
• Bandwidth (C/A):
    GPS: > 2 MHz
    GLONASS: > 8 MHz
• Gain: 5 dBic (7cm x 7cm ground plane)
• Internal patchantenna: 25 x 25 x 4 mm
• VSWR: 1.5
LAN
• Gain: 30 dBi
• Cable category: coaxial
• Cable typ: RG-174
• Cable length: 3 m
• Cable colour: black
• Impedance: 50 Ohm
• Voltage: 2.80 ~ 5.00 V
• Current: typ. 13.50 mA @ 3.0 V
• VSWR: 2.0
• Imedanz: 50 Ohm
• Protection class: IP66
• Weight: 0.150 kg
• Dimension (LxWxH): ca. 44.00 x 37.00 x 14.50 mm
• Magnetical bottom
