Wireless Client WiFi5 industrial USR-IOT W630S

Dual Band WiFi 5 Wireless Client MQTT

USR-W630s | Dual Band WiFi 5 Wireless Client
Qualcomm Chip, WPA2/WPA3 Encryption, Modbus Gateway, Rich Protocol

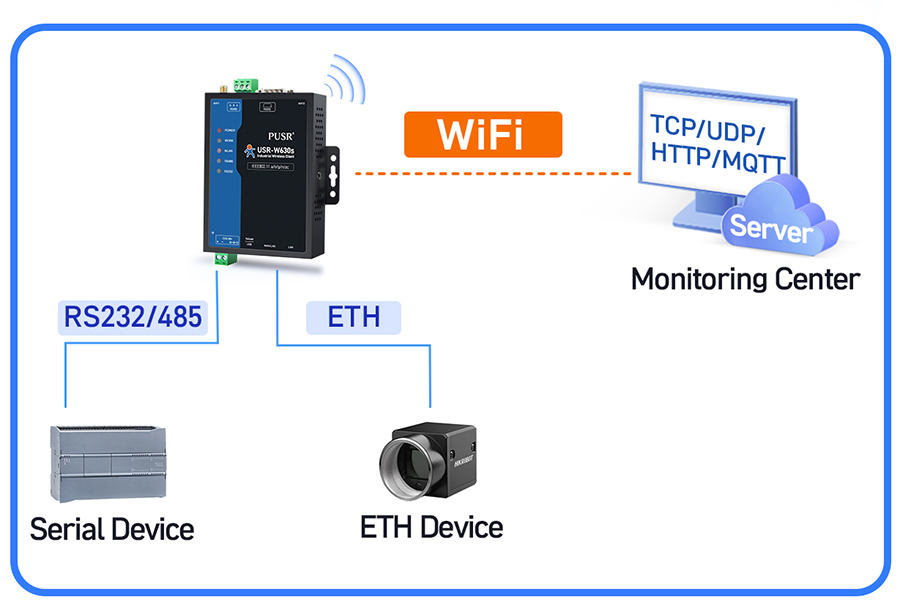

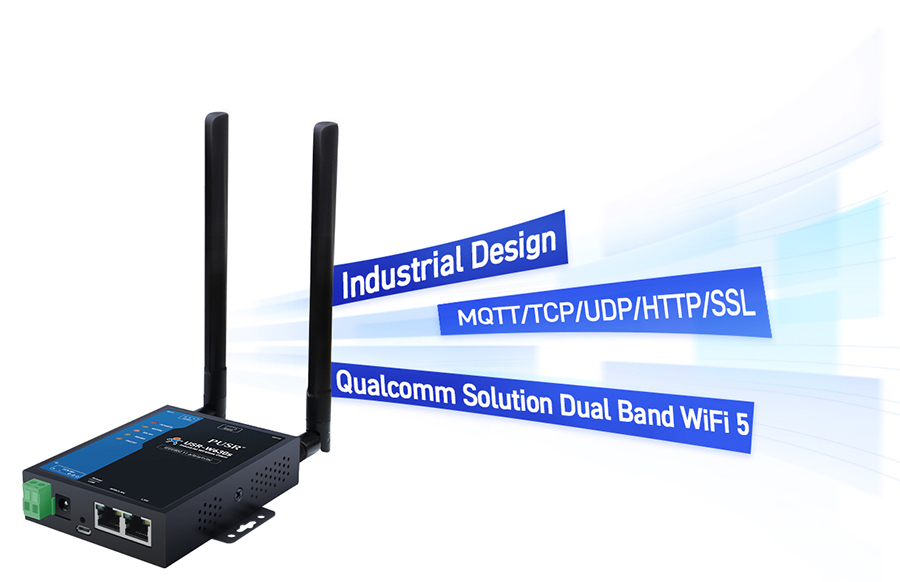

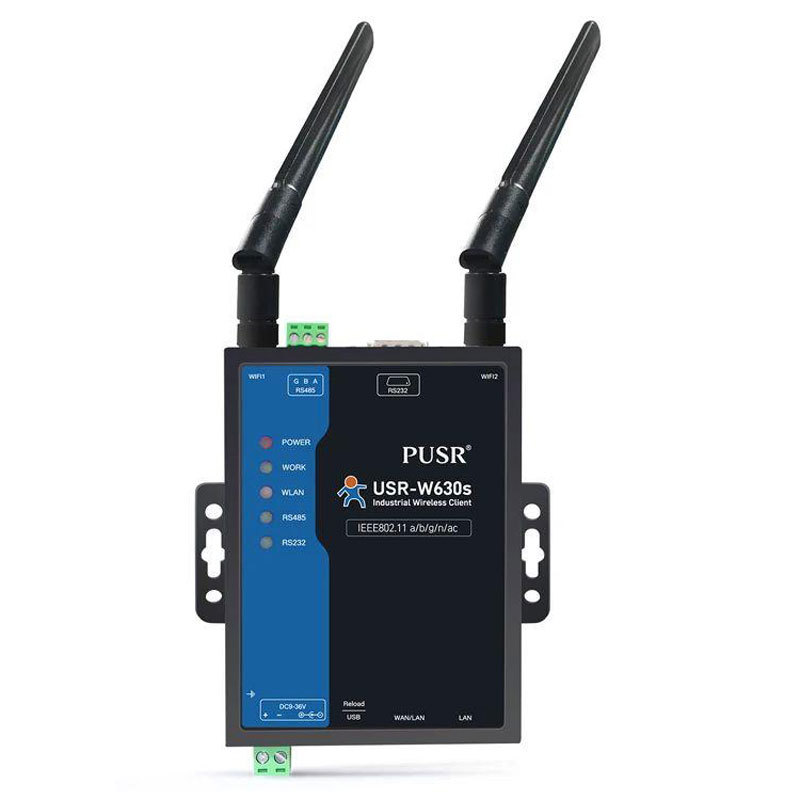

The USR-W630s is the latest dual-band WiFi 5 wireless client device released by PUSR. This device adopts Qualcomm's processor, with a high main frequency of up to 650MHz and integrated 1G DDR storage, capable of quickly and efficiently processing various functions of the product. The product integrates 2.4G & 5.8G WiFi, with a transmission rate of up to 1267Mbps, and also integrates 2*RJ45 ports(1WAN/LAN+1LAN) and 2 serial ports (1 RS232+1 485), enabling data transmission between serial ports, Ethernet ports, and WiFi. It can be well applied in scenarios such as industrial automation, smart parks, warehousing and logistics, energy detection, and smart mining.

Multiple Working Modes, Meeting Diverse Scenarioes

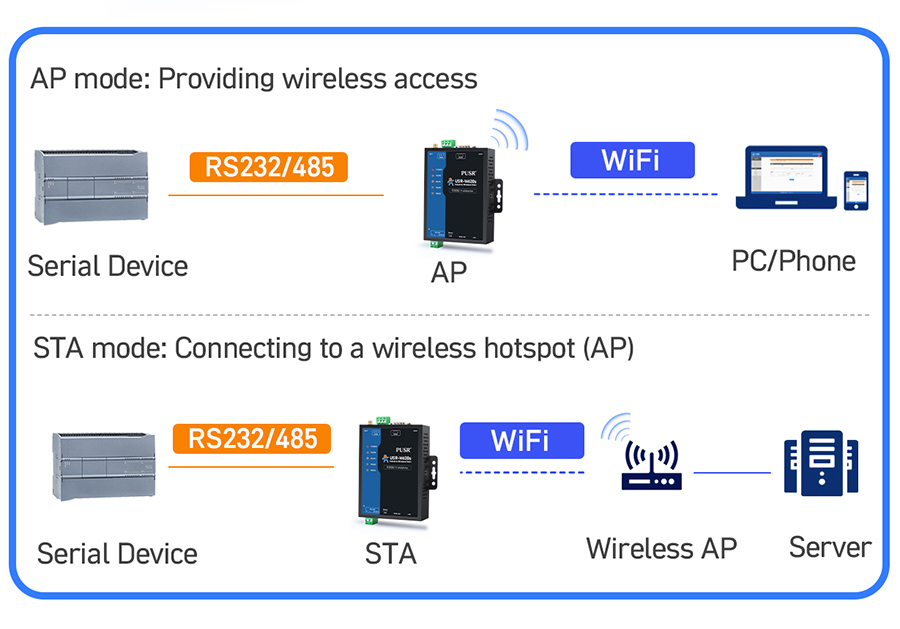

USR-W630s provides a wealth of networking methods: AP, STA, AP+STA, AP+LAN, AP+WAN, STA+LAN, STA+WAN. And this device supports repeater and bridge mode. Through different networking methods, the data communication between the serial port device/LAN device and the remote server/LAN server can be realized, which can meet the complex network application requirements of customers.
