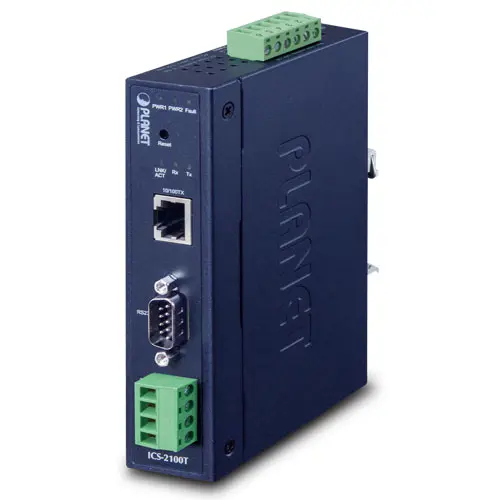

Industrial 1-Port RS232/RS422/RS485 Serial Device Server ICS-2100T

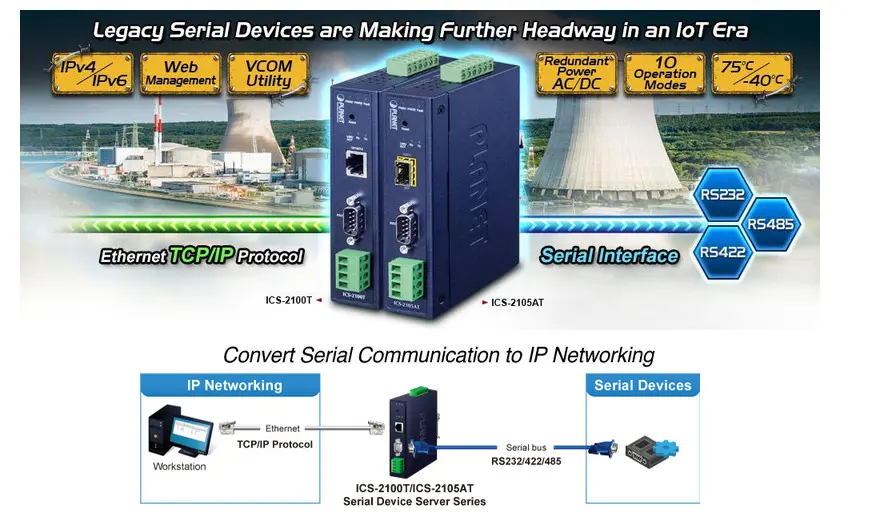

PLANET ICS-2100T Serial Device Server is specially designed to convert RS232, RS422 or RS485 serial communication to Industrial Fast Ethernet networking so as to extend the network distance efficiently and inexpensively. There is one 10/100BASE-TX RJ45 port in the ICS-2100T and its operating temperature ranges from -40 to 75 degrees C for your network needs. The ICS-2100T is a time-saving and cost-effective solution for users and system integrators to quickly transform their serial devices into the Ethernet network with no need of replacing the existing serial devices and software system.

Serial Interface:
• One DB9 interface that supports RS232
• One terminal block interface that supports 2-wire RS485 and 4-wire RS422/RS485 standards
• Asynchronous serial data rates up to 921600bps
• Data mode including VCOM, RFC2217, TCP Server, TCP Client, UDP, remote pair
• Modbus converter server / client and serial telnet modes

Ethernet Interface
• 1-port 10/100BASE-TX RJ45 with auto MDI/MDI-X function
or 100BASE-FX SFP interface Management
• IPv4 and IPv6 dual stack management
• Remote management interfaces
– IP-based Web management
– Telnet console management
– Windows-based VCOM utility supports searching,
monitoring and configuration setting
• IP NTP (Network Time Protocol) and DNS management
• Standard TCP/IP interface and versatile operation modes
• Software Protocol supports ARP, ICMP, TCP/IP, UDP,
HTTP server, DHCP client, Telnet server/client
• Serial Operation mode selected via management interface
• Pair Connection mode for connecting two serial devices
over a network
• Allows a maximum of 4 hosts to be accessed as TCP
client mode
• Firmware upgrade via HTTP protocol
• Accessible IP security control to prevent illegal users
• Event notification
– Remote syslog server
– SNMP trap
– Relay output alarm
• DHCP client for IP address assignment
• PLANET Smart Discovery utility automatically finds the client devices on the network
