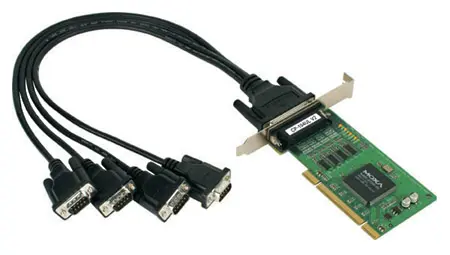

MOXA CP-104UL-DB9/V2 4-port RS-232 smart PCI serial board

MOXA CP-104UL-DB9/V2 4-port RS-232 smart Universal PCI serial board
MU860 (16C550C compatible)

- Over 800 Kbps data throughput for top performance
- 921.6 Kbps maximum baudrate for super fast data transmission
- 128-byte FIFO and on-chip H/W, S/W flow control
- Compatible with 3.3/5V PCI and PCI-X
- Drivers provided for Windows (Vista, 2003, XP, 2000), WinCE 5.0, Linux, and Unix
- 15 KV ESD protection on the board

Overview

The CP-104UL 4-port universal PCI boards is designed for POS and ATM applications. They are a top choice of industrial automation engineers and system integrators, and support many different operating systems, including Windows, Linux, and even Unix. In addition, each of the boards' RS-232 serial ports supports a super fast 921.6 Kbps baudrate. The CP-104UL provide full modem control signals to ensure compatibility with a wide range of serial peripherals, and they work with both 3.3V and 5V PCI buses, allowing the boards to be installed in virtually any available PC server.
