Convertitore USB2-M>Serial-TTL DELOCK 83785

Serial-TTL/LVTTL PIN-HEADER 1.8 mt

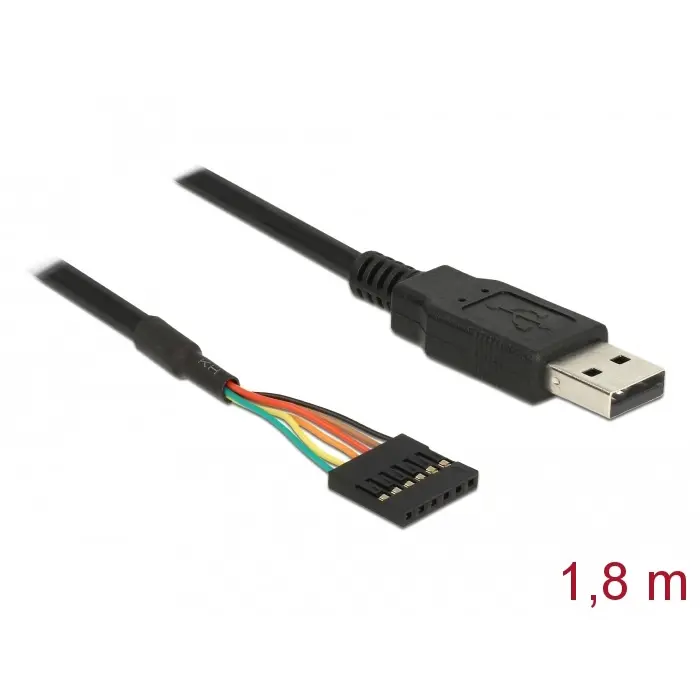

Delock Converter USB 2.0 male > TTL 6 pin pin header female 1.8 m (3.3 V)

This USB TTL converter by Delock is due to its wide temperature range most suitable for industrial applications. It supports virtual COM ports and enables optional a direct access to the interface. The converter is multifunctional compatible to the standard systems Windows, Linux and MAC. It is suitable for Embedded systems, control systems, Field Programmable Gate Array, MCUs, dongles etc.

• Connector: USB 2.0 type A male > TTL 6 pin pin header
• Pin assignment:
1. GND
2. CTS
3. VCC
4. TXD
5. RXD
6. RTS
• Chipset: FTDI 232RL
• Cable gauge: 26 AWG
• Temperature range: -20°C to +80°C
• No-load current: 70 uA
• Converter: 5 V / 15 mA (VCC, GND)
• Compatible to UHCI / OHCI / EHCI controller
• LVTTL 3,3 V (data) / 4 mA or HighLevel 12 mA
• Data transfer rate up to 3 Mbps
• Databit: 7 or 8
• Stoppbits: 1 or 2
• Parity: none, space, even, odd, mark
• Flow control: software XON / XOFF or hardware RTS / CTS
• FIFO: 128 Byte – RX
256 Byte – TX
• Cable length: ca. 1.80 m

Requisiti di sistema: • Windows XP/XP-64/Vista/Vista-64/7/7-64/8.1/8.1-64/10/10-64/11, Windows CE 4.2, 5.0, 6.0,
Mac OS 10.5, 10.6, Mac OS ex 10.9, Linux ex Kernel 2.6
• PC or laptop with a free USB type A port
