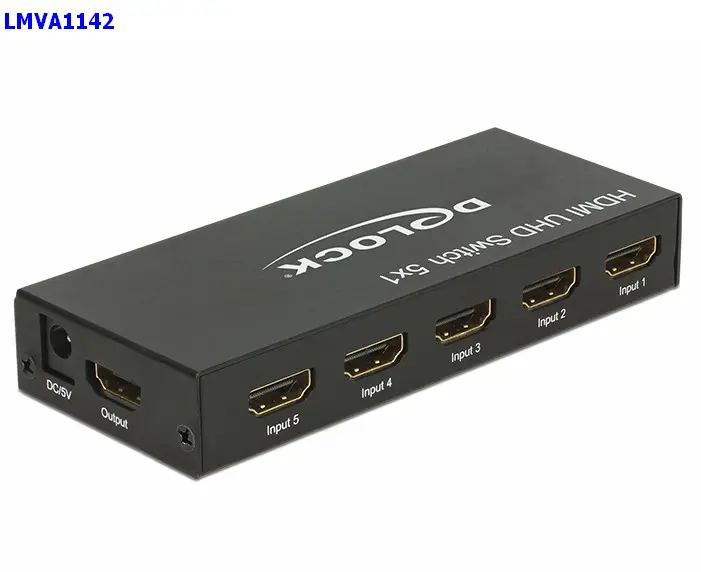

Switch HDMI 5in=>1out HDMI UHD 4k 18685

DELOCK 3840 x 2160 @ 60 Hz
With this Delock HDMI switch up to five HDMI devices can be used with one HDMI monitor, TV or beamer. With the button on the device or the remote control you can switch between the HDMI devices.

Specification
• Connector:
Input:
5 x HDMI-A 19 pin female
1 x DC 5 V power connector
Output:
1 x HDMI-A 19 pin female
• HDMI port switching: automatic function, via button or via infrared remote control
• LED indicators for active HDMI port
• High Speed HDMI specification
• Supports 3D displays
• Supports HDCP 1.4 and 2.2
• Supports a resolution up to 3840 x 2160 @ 60 Hz
(depending on the system and the connected hardware)
• Video bandwidth up to 600 MHz / 6 Gbps
• Power consumption: max. 2.0 W
• Metal housing
• Colour: black
• Dimensions (LxWxH): ca. 123 x 51 x 20 mm

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.3 A
• Output: 5 V / 1 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9 mm

System requirements
• A free HDMI female port
• HDMI cable
