Convertitore USB=>RS232 3 fili OW 90428

FTDI FT232R 2mt ESD PROTECT 4kV/8kV

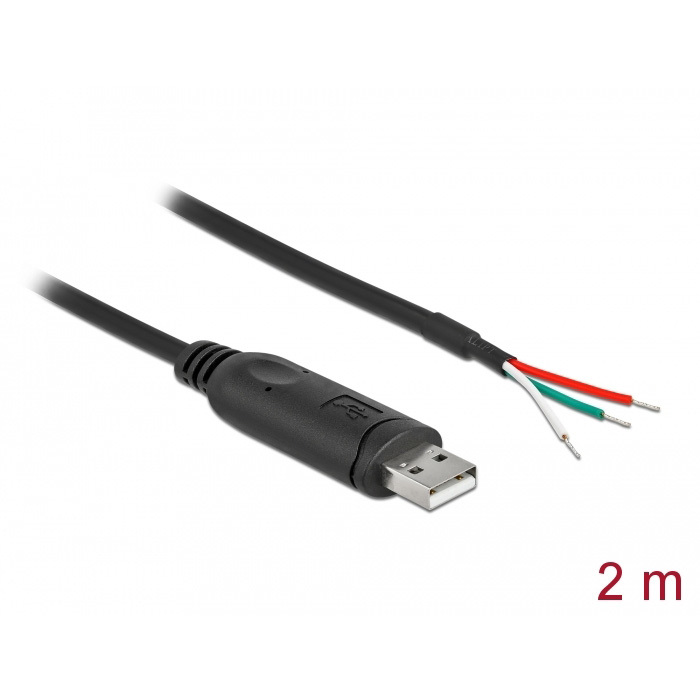

Delock Adapter cable USB 2.0 Type-A to Serial RS-232 with 3 open wires 2 m

This USB 2.0 Type-A to serial RS-232 adapter cable by Delock is suitable as a connection cable between a device with USB 2.0 and a device with RS-232 port. With the tinned open cable ends, the connection can be made directly to the RS-232 device connector or flexible to various terminal blocks. In addition, it can be used to produce individual adapters and cable assemblies.

Connectors:
1 x USB Type-A male
1 x Serial RS-232 3 x open wires (tinned)
Chipset: FTDI FT232R
Compatible to UHCI / OHCI / EHCI controller
Databits: 7 or 8
Stop bits: 1 or 2
Parity: none, space, even, odd, mark
Data transfer rate up to 230.4 Kbps
Pinout: RXD (red), TXD (white), GND (green)
ESD protection IEC 61000-4-2
HCP & VCP: ±4 kV
Air Discharge: ±8 kV
Contact Discharge: ±4 kV
Cable diameter: ca. 5 mm
Cable gauge: 26 AWG
Conductor: stranded copper wire
Isolation: PVC
Cable length incl. connectors: ca. 2 m
Colour: black
Operating temperature: -10 °C ~ 80 °C


Requisiti di sistema
Mac OS 10.13 or above
Linux Kernel 2.6 or above
Windows 8.1/8.1-64/10/10-64/11
Windows Server 2012 / Server 2012R2 / Server 2016
PC or laptop with a free USB Type-A port
