Adattatore POE++ BT 95W PLANET POE-175-95

100-240ac>UltraPOE 95W-802.3bt-at Gb LAN
Single-Port 10/100/1000Mbps 802.3bt PoE++ Injector
Advanced 802.3bt PoE Network Solution
PLANET POE-175-95 is a Single-Port, 802.3bt Power over Ethernet Injector with a maximum of up to 95 watts of power output over Ethernet cables.

It is designed specifically to meet the demand for growing higher power required network equipment such as:
PTZ speed dome camera
All-in-one touch PC
Remote digital signage display
Other network devices that need higher power to work normally

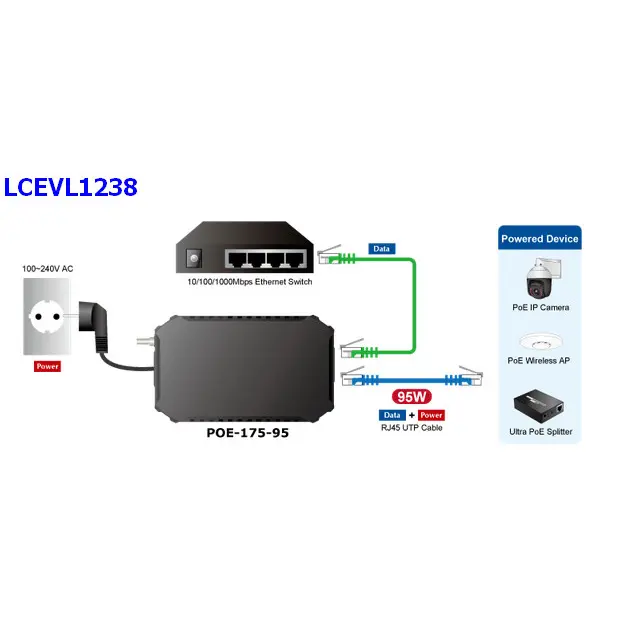

The POE-175-95 delivers the Ethernet digital data with 54V DC power over the twisted-pair cables as a 95-watt Power over Ethernet Injector, and the connected ultra Power over Ethernet splitter, the POE-172S, will separate the digital data and the power into three optional outputs (12V/19V/24V DC) with distance up to 100 meters.

95 watts of Power over 4-pair UTP

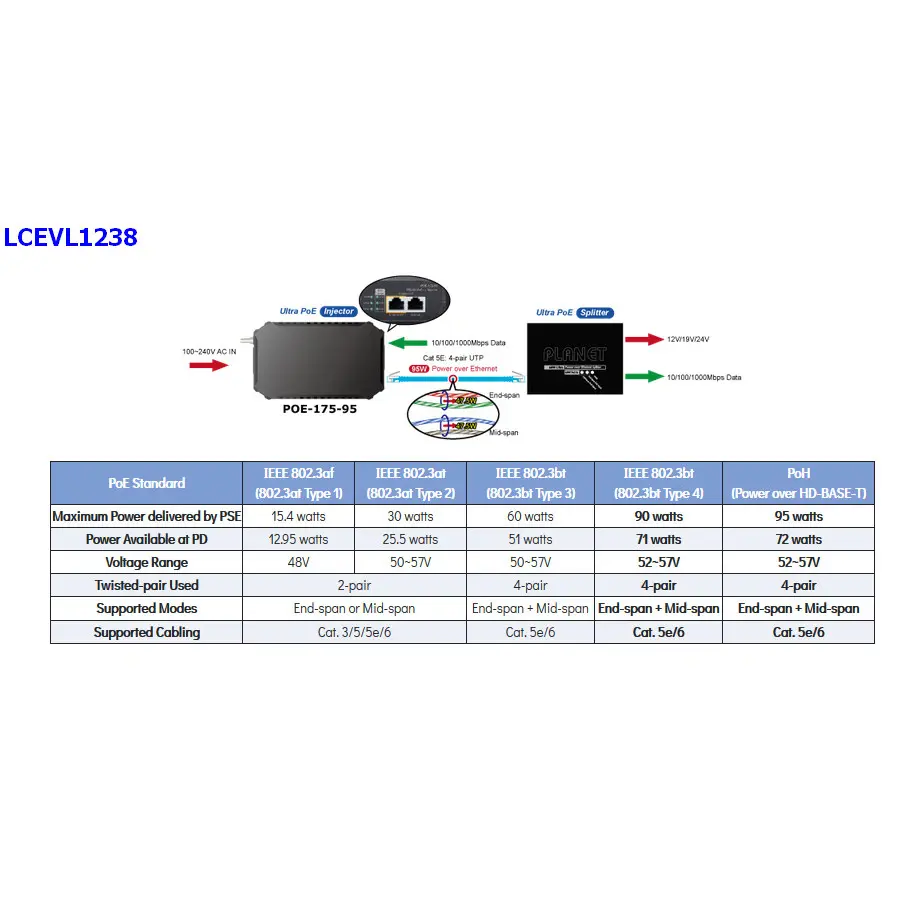

Instead of delivering power over 2-pair twisted UTP – be it end-span (Pins 1, 2, 3 and 6) or mid-span (Pins 4, 5, 7 and 8), it provides the capability to source up to 95 watts of power by using all the four pairs of standard Cat. 5e/Cat. 6 Ethernet cabling.

Intelligent LED Indicator for Real-time PoE Usage
The POE-175-95 helps users to monitor the current status of PoE power usage easily and efficiently via its advanced LED indication. “PoE Power Usage” displayed on the front panel of the POE-175-95 has three LED indicators of different power usages. Via the power usage LED, the POE-175-95 enables the administrator to monitor the status of the power usage of the connected PDs in real time.
