Tester per individuazione cavi elettrici VTTEST11N

Features:
- cable tracker: with continuity mode and tone generator
- tone generator: use the tone generator and the probe to determine where a cable is going and whether or not (and where) the cable is interrupted
- tone generator output (square waveform): single (1500 Hz) or dual (1300 - 1700 Hz)

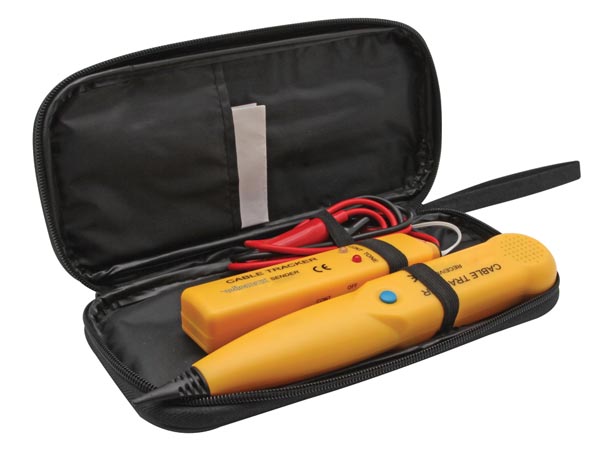

- comes with: soft carrying bag

Specifications:
- tone generator:
- working voltage: 9 VDC (battery not incl.)
- output wave form: square wave signals ± 3.5 Vpp
- single audio frequency: ± 1500 Hz
- dual audio frequency: ± 1300 Hz - 1700 Hz

Probe:
- working voltage: 1 x 9 V type 6F22 (not included)
- max. reception sensitivity: > 30 mV
- maximum output volume: ± 100 dB

Dimensions:
- receiver: 238 x 43 × 26 mm / 9.4" × 1.7" × 1.0"
- transmitter: 145 × 35 × 25 mm / 5.7" × 1.4" × 1.0"
- total weight: ± 160 g
