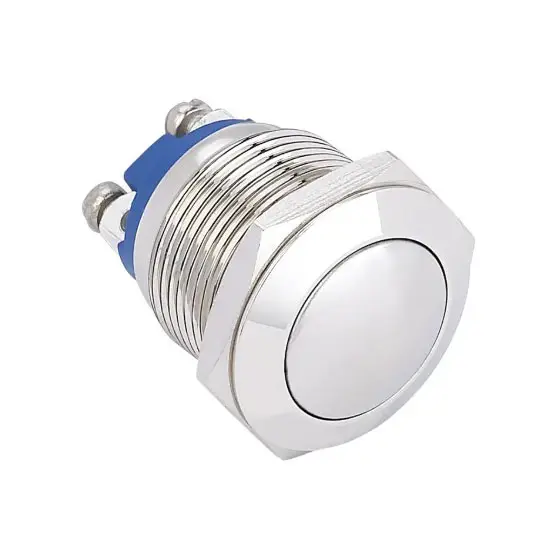

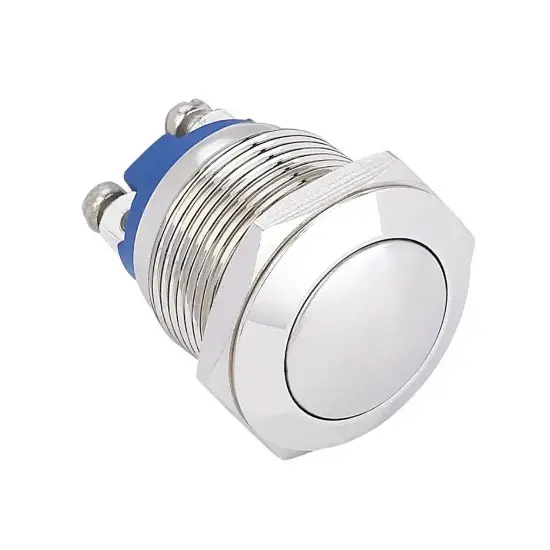

Pulsante IP65 acciaio GQ19B-10/N

Pos: 2 SPST-NO 2A/36VDC IP65 Ø19mm

GQ19B-10/N

• Installation diameter: f19mm

• Head shape: Domed

• Contact structure: 1NO

• Operation mode: Momentary

• Certification: CCC, CE

1.Switch rating: Ui:250V,Ith:5A
2.Mechanical life: =1,000,000 cycles
3.Electrical life: =50,000 cycles
4.Contact resistance: =50mO
5.Insulation resistance: =100MO(500VDC)
6.Dielectric strength: 1,500V,RMS 50Hz,1min
7.Operation temperature: -25 ?~55? (+no freezing)
8.Operation pressure: About 4N
9.Operation travel: About 1.8mm
10.Torque: About 0.6Nm Max.applied to nut
11.Front panel protection degree: IP65,IK08
12.Terminal type: Screw terminal

MATERIAL:

1.Contact: Silver alloy

2.Button: Nickel-plated Brass

3.Body: Nickel-plated Brass

4.Base: PBT
