Modulo DC/DC Converter 0,8 - 24V 2,5/5A max

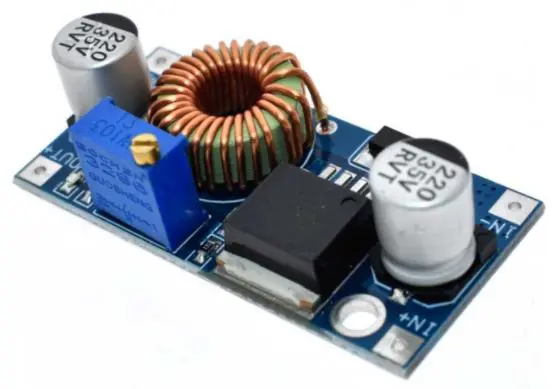

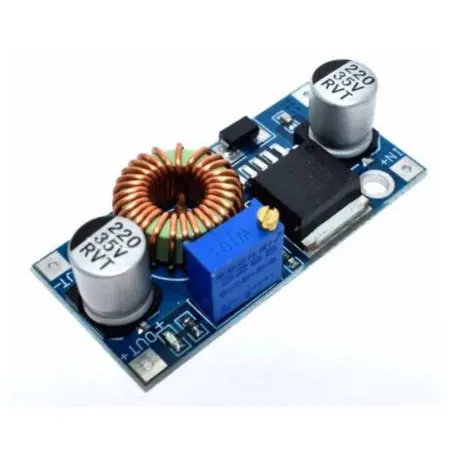

5A DC-DC Step-Down Buck XL4005 Adjustable Power Supply Module

Module Properties: Non-isolated step-down module (BUCK)
Rectification: Non-synchronous rectifier
Input voltage: DC 5V-30V
Output voltage: DC 0.8V-24V (Adjustable, Output < Input)
Output current: Rated current is 2.5A,(5A Max, If current is larger than 2.5A, Enhancement of heat dissipation is required.)(*)
Conversion efficiency:90%(highest)
Switching Frequency: 300KHz.
Output ripple:30mV(maximum)
Load regulation:±0.5%
Voltage regulation:±2.5%
Operating Temperature: -40° ~ +85°
Dimensions: 44 mm. x 21 mm. x 14 mm. (L*W*H) approx

(*) Oltre 2,5A è richiesto l'uso di un dissipatore.
