Automazione:
Arduino
Shield
JOY-IT
Micro board ATtiny85 DIGISPARK DST85
7,22 €
cad.
5,92 € (IVA esc.)
| Oltre 5pz | 7,04 € | 5,77 € (IVA esc.) |
Spedizione gratuita su tutti gli ordini oltre 100,00 € (IVA esc.)
Disponibilità immediata
cod. SDAVS1040
USB- 6x I/O - I2C - SPI - PWM -ADC

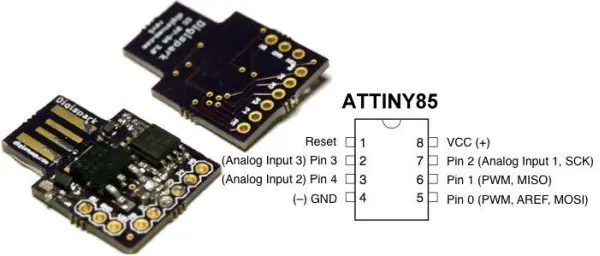

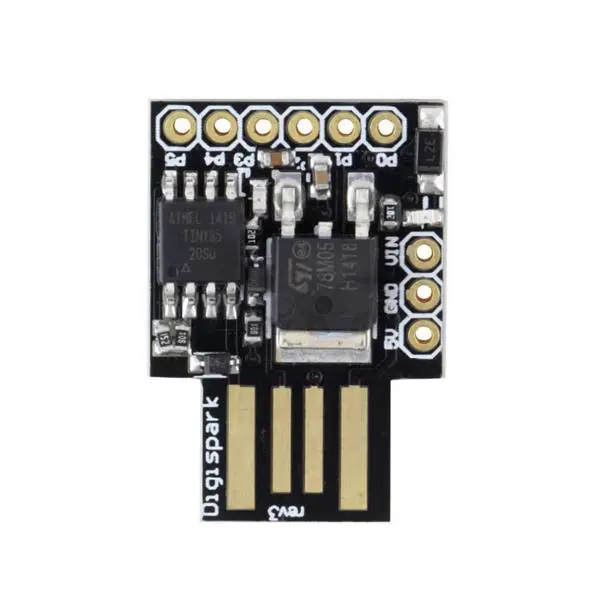

The Digispark is an Attiny85 based microcontroller development board similar to the Arduino line, only cheaper, smaller, and a bit less powerful. With a whole host of shields to extend its functionality and the ability to use the familiar Arduino IDE the Digispark is a great way to jump into electronics, or perfect for when an Arduino is too big or too much.
Specs
• Support for the Arduino IDE 1.0+ (OSX/Win/Linux)
• Power via USB or External Source - 5v or 7-35v (12v or less recommended, automatic selection)
• On-board 500ma 5V Regulator
• Built-in USB
• 6 I/O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB)
• 8k Flash Memory (about 6k after bootloader)
• I2C and SPI
• PWM on 3 pins (more possible with Software PWM)
• ADC on 4 pins
• Power LED and Test/Status LED
The Digispark is an Attiny85 based microcontroller development board similar to the Arduino line, only cheaper, smaller, and a bit less powerful. With a whole host of shields to extend its functionality and the ability to use the familiar Arduino IDE the Digispark is a great way to jump into electronics, or perfect for when an Arduino is too big or too much.
Specs
• Support for the Arduino IDE 1.0+ (OSX/Win/Linux)
• Power via USB or External Source - 5v or 7-35v (12v or less recommended, automatic selection)
• On-board 500ma 5V Regulator
• Built-in USB
• 6 I/O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB)
• 8k Flash Memory (about 6k after bootloader)
• I2C and SPI
• PWM on 3 pins (more possible with Software PWM)
• ADC on 4 pins
• Power LED and Test/Status LED
