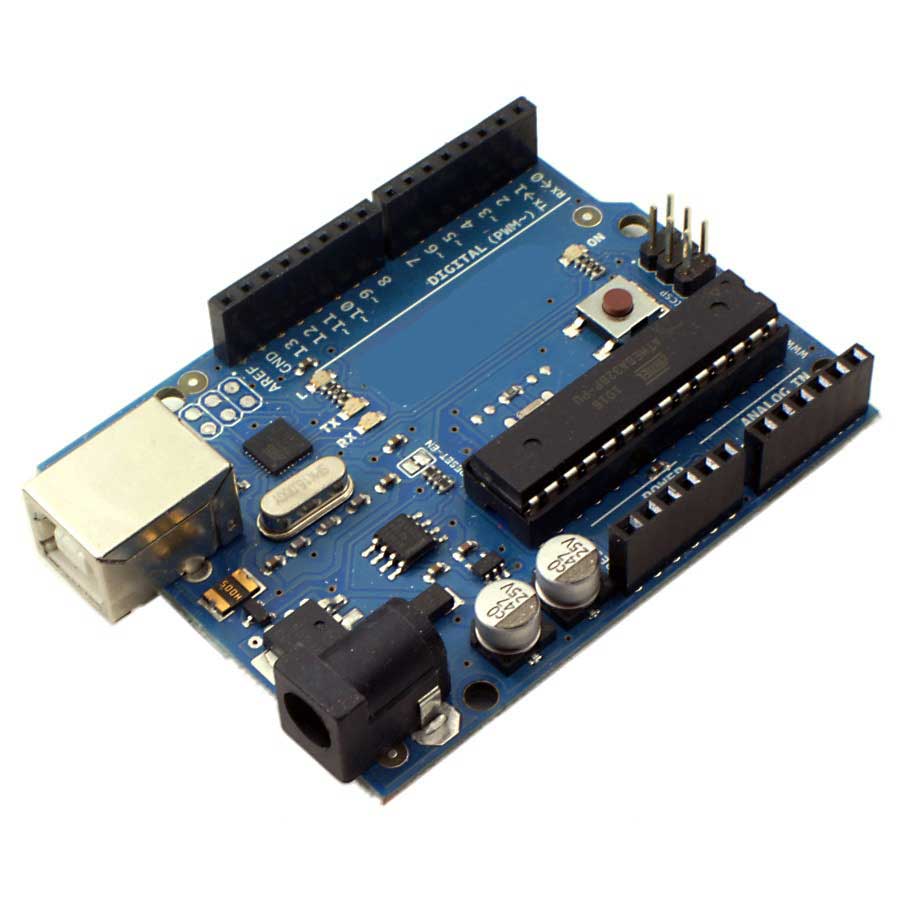

Board base ATMEL ATMEGA328P + cavo USB

The development board is with the open original design schematics, free software interface, and also according to the needs and modifies the download process is simple and convenient. The use of high-speed micro-processing controller (ATMEGA328), the development of the user interface and the environment is very simple, easy to understand, very suitable for beginners to learn.

- Microcontroller: ATmega328
- 1.0 pinout: added SDA and SCL pins that are near to the AREF pin and two other new pins placed near to the RESET pin,the IOREF that allow the shields to adapt to the voltage provided from the board
- Stronger RESET circuit
- Atmega 16U2 replace the 8U2
- Operating Voltage: 5V
- Input Voltage (recommended): 7~12V
- Input Voltage (limits): 6~20V
- Digital I/O Pins: 14 (of which 6 provide PWM output)
- Analog Input Pins: 6
- DC Current per I/O Pin: 40mA
- DC Current for 3.3V Pin: 50 mA
- Flash Memory 32KB (ATmega328) of which 0.5KB used by bootloader
- SRAM: 2KB (ATmega328)
- EEPROM: 1KB (ATmega328)
- Clock Speed: 16MHz
- Comes with USB cable (100cm)
